PLUS AIDE is an annotating software for structural drawing. It works within AutoCad/BricsCAD with some minimum commands to capture BOM and processes data which helps in BOM Generation. Aide provides different custom entities to annotate Angle, Plate and Bolt Items. With these custom entities Aide stores all the data of Extension, Angle, Plate and Bolt Items. Aide entities are same as in Autocad/BricsCAD entities.

PLUS AIDE commands list:

  • AideExt - This command stores extension information
  • AideBolt - This command stores Bought Out information
  • AideAng - This command stores Angle information
  • AidePlt - This command stores Plate information
  • AideExport - This command makes a .aide extension file which contains BOM and process data
  • AideAbout - This command shows the version of Aide application and license information.

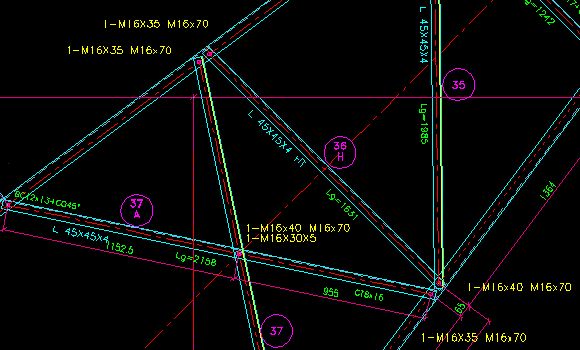

Structural Drawing made in AutoCad with Aide Entities

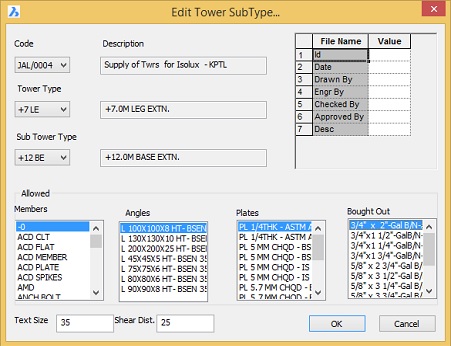

AideExt command
Aide Entity for Extension

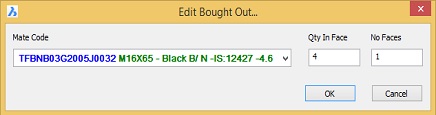

AideBolt command
Aide Entity for Bought Out

AideAng command
Aide Entity for Angle

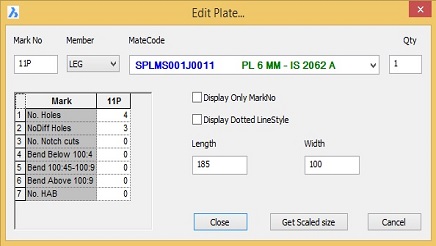

AidePlt command
Aide Entity for Plate
